555 Timer IC for Square Wave Generator Application
555 Timer IC for Square Wave Generator Application - You can start to set your Square Wave Generator up using 555 timer IC through the circuit shown a

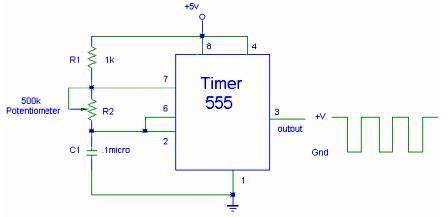

555 Timer IC for Square Wave Generator Application - You can start to set your Square Wave Generator up using 555 timer IC through the circuit shown above.
Find it match with the pinout of 555 timer IC. The osciloscope is then connected to the output of 555 timer IC in order to view the square wave.
From the oscilloscope you can measure the wave frequency and verify it by varying the resistance in the potentiometer (source: utpa.edu)
