UC3706 High Current Push-Pull Output Circuit Diagram

UC3706 High Current Push-Pull Output Circuit Diagram - A single output PWMs is converted to high current push-pull circuit configuration using UC3706

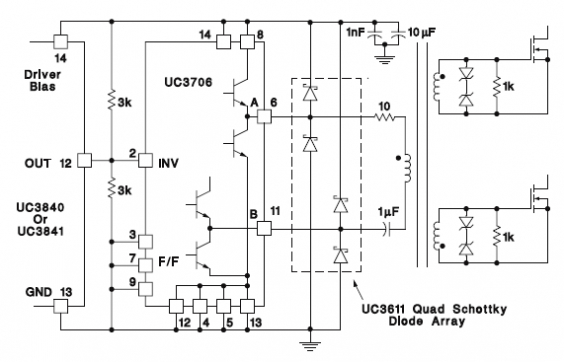

UC3706 High Current Push-Pull Output Circuit Diagram - A single output PWMs is converted to high current push-pull circuit configuration using UC3706 dual output driver series is provide on below schematic.

UC3706 is one of UC1706 dual output driver family which interface low-level control functions and such power MOSFET’s (a high power switching).

These UC1706, UC2706, and UC3706 implies three functions such as single-low-current digital input then activates a pair of high-current which can source to 1.5A each,

an optional single-ended to push-pull conversion, and current imiting, automatic deadband control, and thermal shutdown protection.

Full explanation about UC3706 High Current Push-Pull Output Circuit Diagram can be seen in this pdf datasheet.
