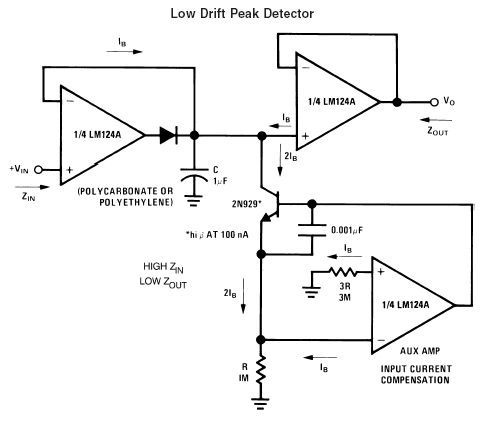

Single Power Supply Voltage in LM124, Application Circuit and Datasheet - Herein is shown one of LM124 application circuit diagram

as Low Drift Peak Detector that take advantage of the wide input common-mode voltage range which includes ground of the device. This circuit diagram emphasize operation on only a single power supply voltage.

As stated before that LM124 operates with only a single power supply voltage, it also have true-differential inputs, and remain in the linear mode with an input common-mode voltage of 0 VDC.

It is noted in the datasheet that the power supply for the IC never become reversed in polarity and if an unlimited current surge through the resulting forward diode within the IC, it may lead to cause fusing of the internal conductors or a destroyed unit.

In the datasheet, you will be provided with LM124 typical single-supply application circuit diagram such as DC Summing Amplifier, Power Amplifier,

LED Driver, “BI-QUAD” RC Active Bandpass Filter, Squarewave Oscillator, Lamp Driver, Voltage Follower, Pulse Generator,

Low Drift Peak Detector (click to enlarge the figure), Comparator with Hysteresis, Voltage Controlled Oscillator Circuit, Bridge Current Amplifier and more.

Complete read of Single Power Supply Voltage in LM124, Application Circuit and Datasheet, here in the LM124/LM224/LM324/LM2902 Datasheet (source: national.com)
