Simple Bootstraps Startup Circuit Diagram

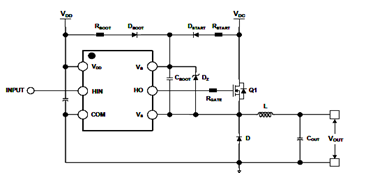

Simple Bootstraps Startup Circuit Diagram - A simple bootstrap startup circuit diagram is schemed in the following picture. Bootstrap circuit is usefu

Simple Bootstraps Startup Circuit Diagram - A simple bootstrap startup circuit diagram is schemed in the following picture. Bootstrap circuit is useful in a high-voltage gate driver.

A circuit comprised of startup resistor, startup resistor, startup diode, and Zener diode may solve the problem of delivering initial charge to the bootstrap capacitor if it assumed there was enough voltage differential between input voltage and output voltage.

(source: fairchildsemi.com).

Tags: high-voltage gate driver, bootstrap circuit, bootstrap startup,
