Open Loop Laboratory Test Circuit for UC1825 Series
Open Loop Laboratory Test Circuit for UC1825 Series - The UC1825 family (UC2825, UC3825) are PWM control ICs designed for use in applications such as
Open Loop Laboratory Test Circuit for UC1825 Series - The UC1825 family (UC2825, UC3825) are PWM control ICs designed for use in applications such as current-mode or voltage mode systems.

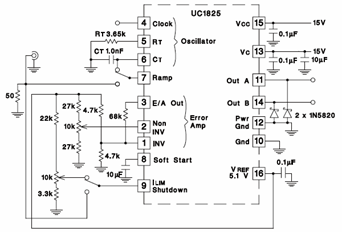

The following circuit diagrams the open loop laboratory testing fixture which is useful for exercising many of the UC1825′s functions and measuring their specifications.
It is underlined that the use of ground plane is highly recommended (focus.ti.com).
