Nokia 3230 DKU-2 Cable Schematic

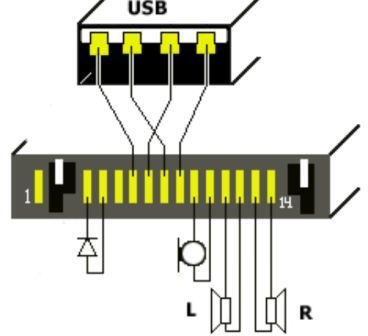

Nokia 3230 DKU-2 Cable Schematic Diagram and Port Description - The following figure is the schematic of the DKU-2 cable for Nokia 3230.

Nokia 3230 DKU-2 Cable Schematic
The Pop-Port Description of the N3230 is provided as follow:
  1. Charge (V charge)
  2. GND (Charge GND)
  3. ACI (ACI – insertion and removal detection)
  4. Vout (DC out)
  5. USB (Vcc +5V)
  6. Fbus RX/ USB D+
  7. Fbus RX/ USB D+
  8. GND (Data GND)
  9. Xmic N (Audio in – ext mic input)
  10. Xmic P (Audio in – ext mic input)
  11. Hsear N (Audio out – ext. audio out – left)
  12. Hsear P (Audio out – ext. audio out – left)
  13. Hsear R N (Audio out – ext. audio out – right)
  14. Hsear R P (Audio out – ext. audio out – right)
