New RGB Backlighting System for Liquid Crystal Display

New RGB Backlighting System for Liquid Crystal Display - We provide you with an article contain information about new backlighting system for Liquid C


New RGB Backlighting System for Liquid Crystal Display

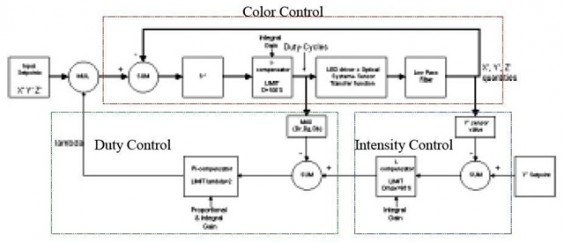

New RGB Backlighting System for Liquid Crystal Display - We provide you with an article contain information about new backlighting system for Liquid Crystal Displays (LCDs) Schematic diagram of RGB backlight using feedback controller system descriptionutilize RGB LED lightsources, an optical sensor and feedback controller.

The aim of using optical feedback is a color stability over temperature, maintaining constant brightness, and controlling any color point or brightness required by the LCDs.

Within the article you will find section discuss about Main functional blocks of the backlighting systems, The understanding of xy coordinate and brightness y (colorimetry), Luxeon RGB lightsource,

Typical LED performance in temperature/lifetime behaviour, LED output wavelength using pulse width modulation (PWM), the RGB backlighting system description (click figure to enlarge),

Feedback controller (clipping, brightness, calibration), Photodiode sensor for averaging radiometric power, and Luxeon LED driver descriptions.

See the capability of high performance LED backlight system for LCDs using optical feedback and luxeon lightsources for color controlling in the following LCD article (source: philipslumileds.com).
