Micropower Linear Voltage Regulator in the Battery Charger Circuit

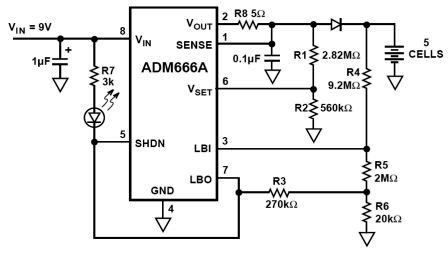

Micropower Linear Voltage Regulator in the Battery Charger Circuit - Herein is an example of a simple, low cost and flexible battery charger circuit using micropower linear voltage regulator device, ADM666A from Analog.

In the ADM666A application note, you can find detailed explanation about this low cost battery charger circuit such as its Maximum output voltage, Charge termination voltage calculation, monitoring the battery voltage level, maximizing the circuit efficiency, and etc.
