MAX34406 Typical Application Circuit and Datasheet

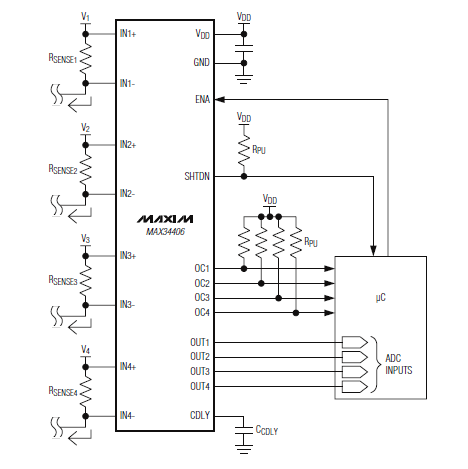

MAX34406 Typical Application Circuit and Datasheet - Illustration below shows MAX34406 Typical Application Circuit. The MAX34406 is current-sense amplifier that provides perfection reliability.

It gives analogue results for each of the four amplifiers that can be provided to an exterior ADC, and comprises four overcurrent comparators with a set 1.0V limit.

All four comparators are practically ORed, and the outcome can be deferred with an outer capacitor before it is fed to a latched typical shut down open-drain outcome pin.

This MAX34406 quad current-sense amplifier used to be applied in applications such as Network Switches/Routers, Base Stations Servers, Smart Grid Network Systems, and Industrial Controls.

Complete MAX34406 Typical Application Circuit can be download in the MAX34406 datasheet here. (source: maxim-ic.com)
