IC Piezoelectric Signal Conditioning Sensors Datasheet

IC Piezoelectric Signal Conditioning Sensors Datasheet - A device with function to measure pressure, acceleration, strain, or force by converting them

IC Piezoelectric Signal Conditioning Sensors Datasheet - A device with function to measure pressure, acceleration, strain, or force by converting them into an an electrical signal is what we called a piezoelectric sensor (wikipedia.org).

It was from the Greek word piezein, meaning to press or squeeze. Below, we provide you with an integrated circuit piezoelectric (ICP) sensor conditioner, an MODICP Datasheet.

You can find the features of this device such as an ICP sensor power conditioner, small size with rugged epoxy-filled enclosure, output normalizedto 0-5V, and etc. Also there is a description about installing this device, the specifications and the calybration section (Analyzer V8 calibration).

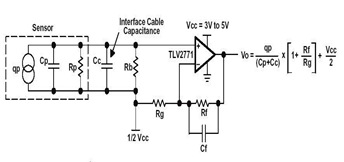

A piezoelectric sensor is modeled as a charge source with a shunt capacitor and resistor, or as a voltage source with a series capacitor and resistor.

They are well suited for dynamic or ac applications since it produced decays with time due to the internal impedance of the sensor and the input impedance of the signal conditioning circuits (figure enlarged click ).

So, piezoelectricity refers to the generation of electricity or of electric polarity in dielectric crystals when subjected to mechanical stress and conversely, the generation of stress in such crystals in response to an applied voltage.

A normal output voltages from piezoelectric sensors can vary from microvolts to hundreds of volts, and signal conditioning circuitry requirements vary substantially.

Please download complete article about Signal Conditioning Piezoelectric IC Sensors Datasheet with link above provided (source: isaac.ca, and many sources over the internet).

Tags: Sensor Datasheet, Piezoelectricity, Piezoelectric Sensor, pressure sensor, power conditioner,
