FAN5009 MOSFET Driver Typical Application Circuit and Datasheet

FAN5009 MOSFET Driver Typical Application Circuit and Datasheet -The herein schematic shows FAN5009 dual bootstrapped 12V high frequency MOSFET driver


FAN5009 MOSFET Driver Typical Application Circuit and Datasheet

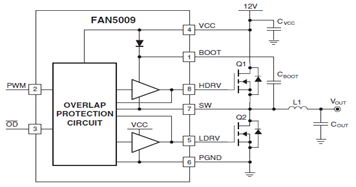

FAN5009 MOSFET Driver Typical Application Circuit and Datasheet -The herein schematic shows FAN5009 dual bootstrapped 12V high frequency MOSFET driver typical application circuit.

It can be formed a complete core voltage regulator for microprocessors if combined with multi-phase PWM controller and power MOSFETs, according to the FAN5009 datasheet.

Related to the application schematic, these drivers can be applied as Supply Capacitor Selection, Bootstrap Circuit, Low and High Side Driver, and Adaptive Gate Drive Circuit.

See more about FAN5009 MOSFET Driver Typical Application Circuit in the datasheet (source: fairchildsemi.com)

Tags: dual bootstrap, FAN5009 datasheet, mosfet driver,
