Ethernet DC Power and Digital Data Connection Circuit Schematic

Ethernet DC Power and Digital Data Connection Circuit Schematic-You can see the schematic shown how two Ethernet (802.3af) devices connect together via a “Cat 5″ twisted-pair cable.

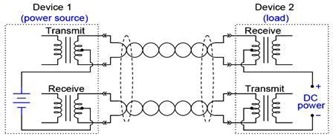

DC Power and Digital Data Connection Circuit Schematic on two Ethernet Devices

The 802.3af Ethernet standard allowing both DC power and digital data to be communicated over the pairs of wires.
