Dual Line Interface RS232 to RS485 Converter Datasheet -The following article provide you with an example of RS232 to RS 485 Converter which has dual line interface per signal.
As also has been reviewed in the previously article about RS232 to RS485 Converter, this device is designed for high speed data transmission between computer system and/or peripherals over long distance under high noise condition.
What you will find in the RS232 to RS485 Converter Datasheet are Technical Specifications, switch installation instructions (2-way select switch, and 3-way control switch), Long distance cable laying
instructions, table of : RS 232 Port – D9 Female Connector, Output port-D9 Male connector, LED Indication, RS 232 Cable, output cable-4 wire, and output cable-2 wire.
RS232 to RS485 Converter commonly used in applications such as connecting medical equipments with PC, connecting EPABX to PC, Access Control System, transfering data between Master/Slave Clock.

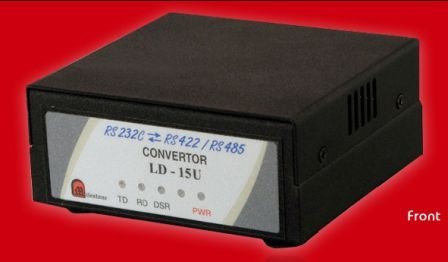

It consist of various models available, commonly it support 1.5 kms distance support and have LED indication for Tx, Rx and PWR line.
Complete datasheet about Dual Line Interface RS232 to RS485 Converter Datasheet can be downloaded in pdf document (source: milestone.co.in).
