DRV8833 Parallel H-Bridge Motor Driver

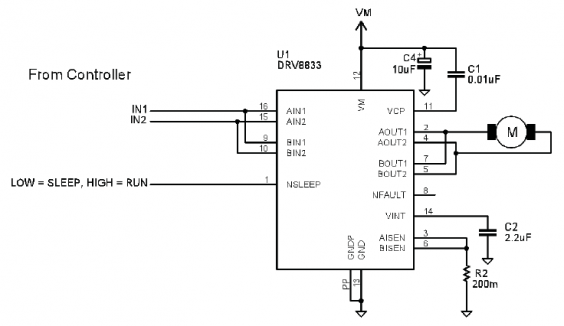

DRV8833 Parallel H-Bridge Motor Driver Circuit Diagram and Datasheet -The circuit diagram schemes DRV8833 H-Bridge Motor Driver parallel connection. Two of this dual motor driver can be connected in parallel in order to give double current of a single H-bridge.

In this parallel circuit, DRV8833 can prevent cross-conduction – or you may mention it as shoot-through in those two bridges because of the timing differences, since the DRV8833 dual h-bridge motor-driver has its internal dead time.

According to the DRV8833 datasheet, this device is suitable for applications using dual bridge motor driver such as toys, printers, and other mechatronic applications since it may drive two DC brush motors, a bipolar stepper motor, solenoids, or other inductive loads.
