Controlling White Circuit Magnet Current for The Booster Synchrotron

Controlling White Circuit Magnet Current for The Booster Synchrotron -Below is the White Circuit Schematic figure which is used in the booster synchr


Controlling White Circuit Magnet

Controlling White Circuit Magnet Current for The Booster Synchrotron

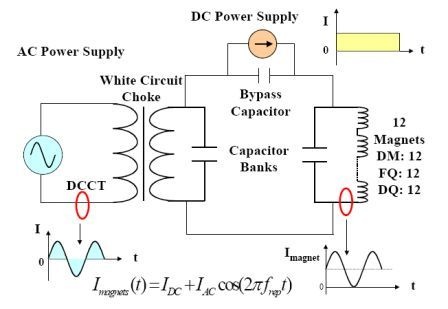

-Below is the White Circuit Schematic figure which is used in the booster synchrotron. The following file will summarize
Schematic of the White Circuit for

The Booster Synchrotronyou with informations regarding the operation performance of the White circuit and to make the White circuit magnet current controllable.
The aim is that it will help to find the strategy for reducing the fluctuation of the beam current.

Accordingly, the booster synchrotron consist of three families of magnet systems (dipole, the focusing quadrupole and the defocusing quadrupole magnets) with 12 magnets for each of those group.

In the White Circuit, two coupled resonant circuits comprise the circuit with A bypass capacitor and a DC power supply connect two resonant LC circuits. Each White circuit is excited by an IGBT based DC and AC power supply, which are independent power supply souces.

Another sections you can find in this article discuss the field regulation, Current and phase regulation loop of the AC power supply schematic diagram, performance of the measurement system, Current Stability of the White Circuit, and Phase Tracking Stability of the White Circuit.

The article was written by C. J. Wang and colleagues from National Synchrotron Radiation Research Center, Hsinchu 30077, Taiwan. Please have complete read of Controlling White Circuit Magnet Current for The Booster Synchrotron in this white circuit article of pdf filetype.
