Rangkaian Buzzer Elektronik
- Salam para Electrical Engineer yang setia membaca artikel pada blog ini. Semoga tetap bersemangat untuk belajar dan terus belajar tentang elektronika.

Pada kesempatan kali ini saya akan berbagi tentang Rangkaian Buzzer Elektronik. Bagaimana cara membuatnya ? silahkan simak artikel di bawah ini. Gunakan fitur translate di sebelah kanan untuk menterjemahkan teks berbahasa inggris.

Skema Rangkaian

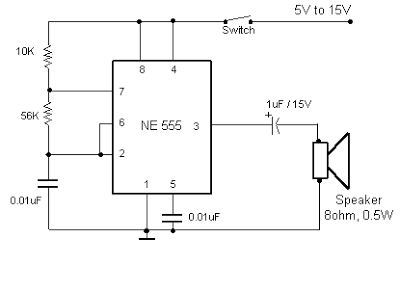

Skema Rangkaian Buzzer Elektronik
Skema Rangkaian Buzzer Elektronik

Simple Electronic buzzer series is a series that only use 2 resistor, 3 capacitor , NE555 Chip, switch, and speaker. string up series of simple electronic buzzer is also very easy and simple.

IC NE555 is the frequency of 1 kHz when the switch is pressed. This frequency can be set using the potensiometer 10 KOhm. Picture a series of simple electronic buzzer can be seen above:

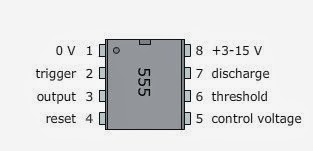

IC NE555

555 timer IC provides practical solutions and relatively inexpensive for a variety of electronic applications related to the timing (timing). Especially two of the most popular application is a series of monostable and astable timing.



  1. Pin 1: Ground, is the input pin of the source of the negative DC voltage
  2. Pin 2: trigger, negative input from the lower comparators (comparator B) that maintain oscillation capacitor voltage in the lowest 1 / 3 Vcc and set RS flip-flop
  3. Pin 3: output, the output pin of the IC 555.
  4. Pin 4: reset, the pin that serves to reset the latch inside the IC to be influential to reset the IC work. This pin is connected to a PNP-type transistor gate, so the transistor will be active if given a logic low. Normally this pin is connected directly to Vcc to prevent reset
  5. Pin 5: control voltage, this pin serves to regulate the stability of the reference voltage negative input (comparator A). This pin can be left hanging, but to ensure the stability of the reference comparator A, usually associated with a capacitor of about 10nF to berorde pin groun
  6. Pin 6: threshold, this pin is connected to the positive input (comparator A) which will reset the RS flip-flop when the voltage on the capacitor from exceeding 2 / 3 Vc
  7. Pin 7: discharge, this pin is connected to an open collector transistor Q1 is connected to ground emitternya. Switching transistor serves to clamp the corresponding node to ground on the timing of certain
  8. Pin 8: vcc, pin it to receive a DC voltage supply. Usually will work optimally if given a 5-15V. the current supply can be seen in the datasheet, which is about 10-15mA.
